TELESCOPING BOOM TB8X21
$4,465.00 USD
Skip to product information
TELESCOPING BOOM TB8X21
MESSER ATTACHMENTS
$4,465.00 USD
Phone: (402) 946-7771

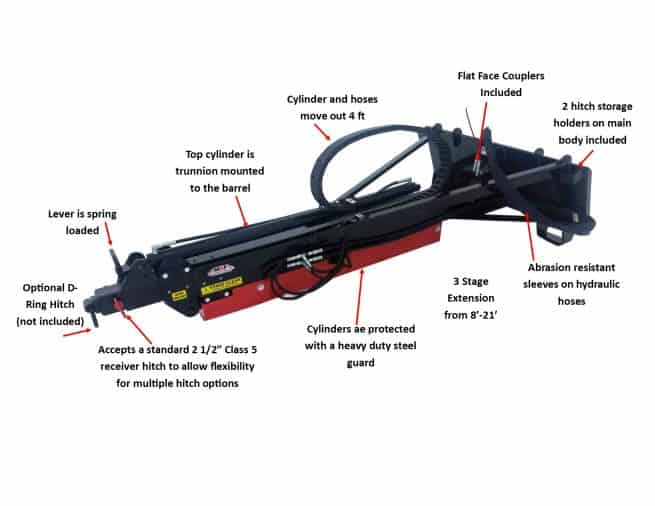

- Telescoping Boom 8' - 21'
- 3 Stage Extension: the first 2-48" stages provide 96" of hydraulic powered extension and the 3rd stage provides over 60" of manual extension with a spring loaded lock pin
- Accepts a standard 2 1/2" class 5 receiver hitch to allow flexibility for multiple hitch options
- 2 hitch storage holders on main body are included
- Lifting capacity: Depends on extension angle, length and machine operating capacity
- Recommended for use with machines having a Rated Operating Capacity (ROC) of more than 2000# but not to exceed 4000#
- Use the following chart to determine what the lifting capacity will be with this boom on your machine in various positions Machine Rated Operating Capacity (ROC) 2000 2500 3000 Max Load Horizontal (Collapsed) 870 lbs 1180 lbs 1490 lbs Max Load Horizontal (Fully Extended) 280 lbs 410 lbs 540 lbs Max Load @ 70 deg Vertical (Collapsed) 2000 lbs 2500 lbs 3000 lbs Max Load @ 70 deg Vertical (Fully Extended) 975 lbs 1290 lbs 1600 lbs
