MESSER HYDRAULIC PALLET FORKS

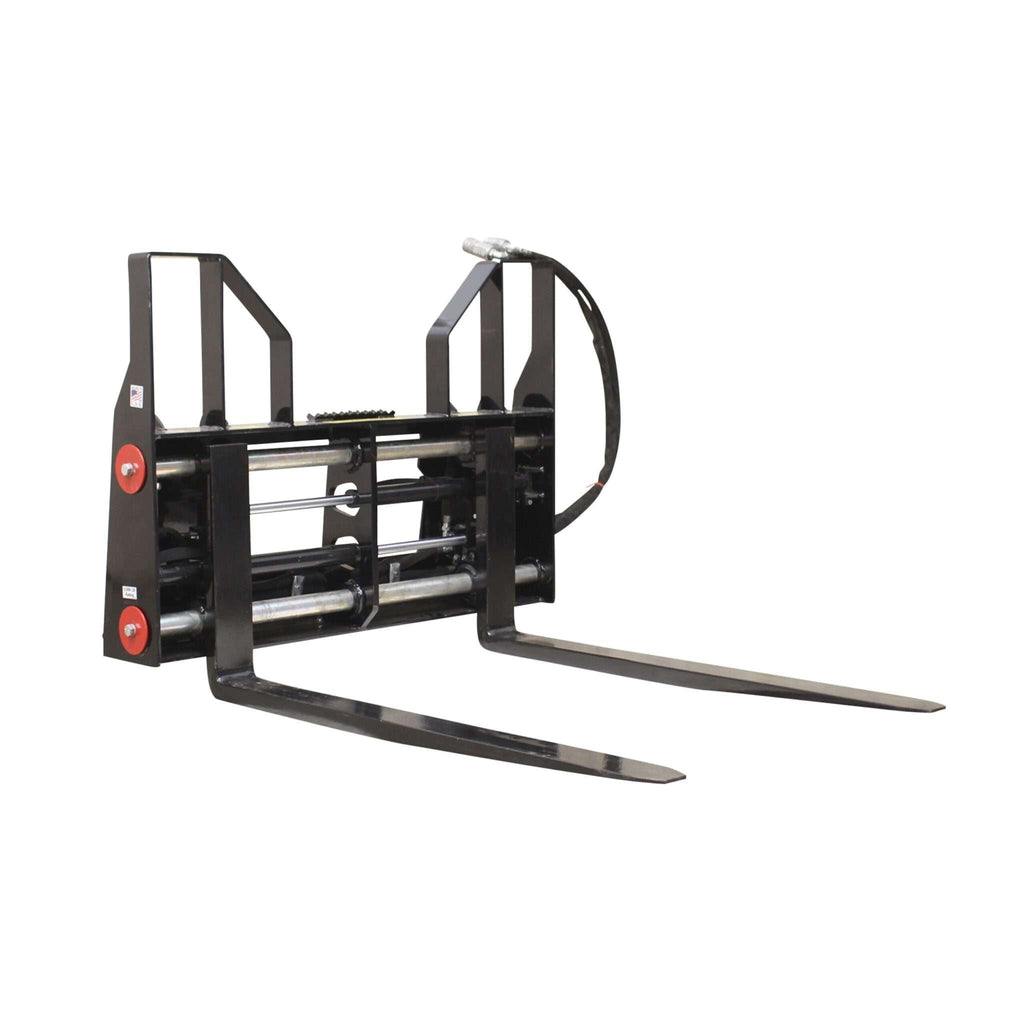

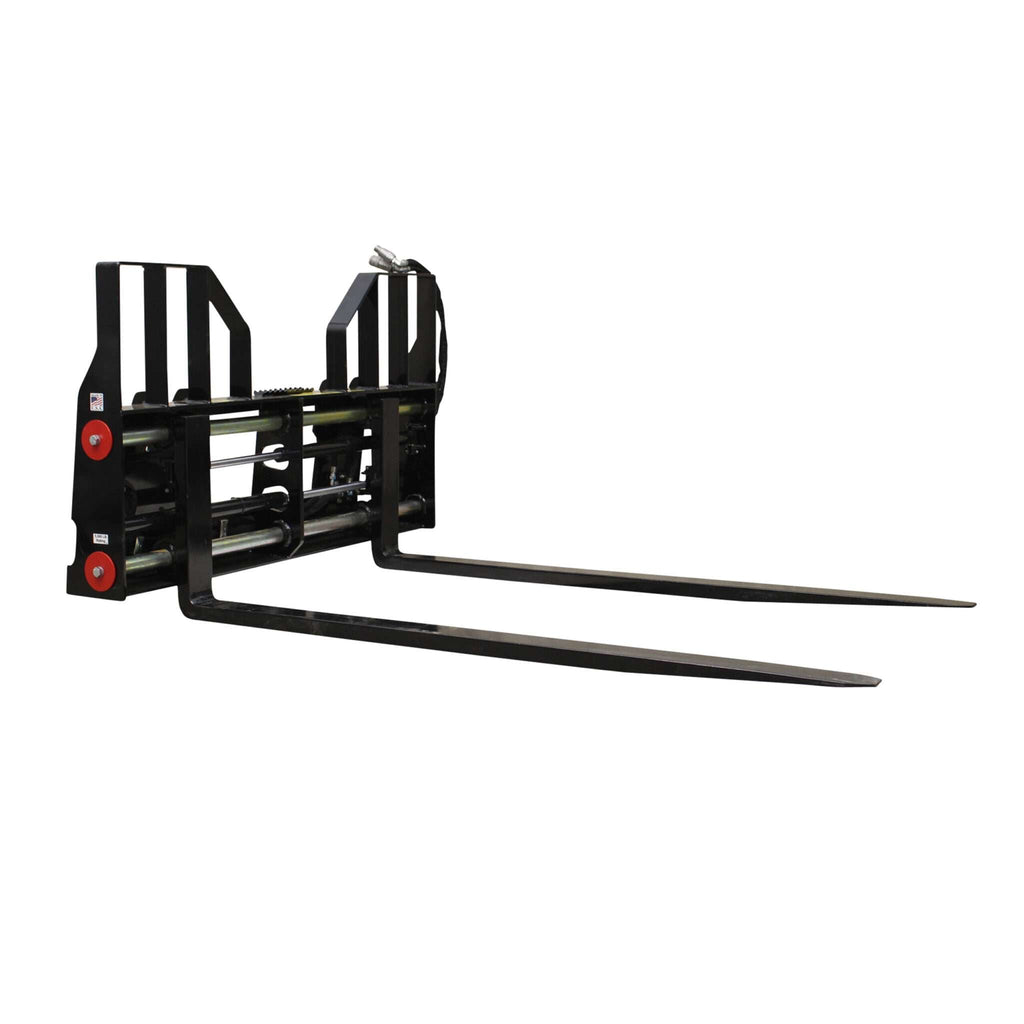

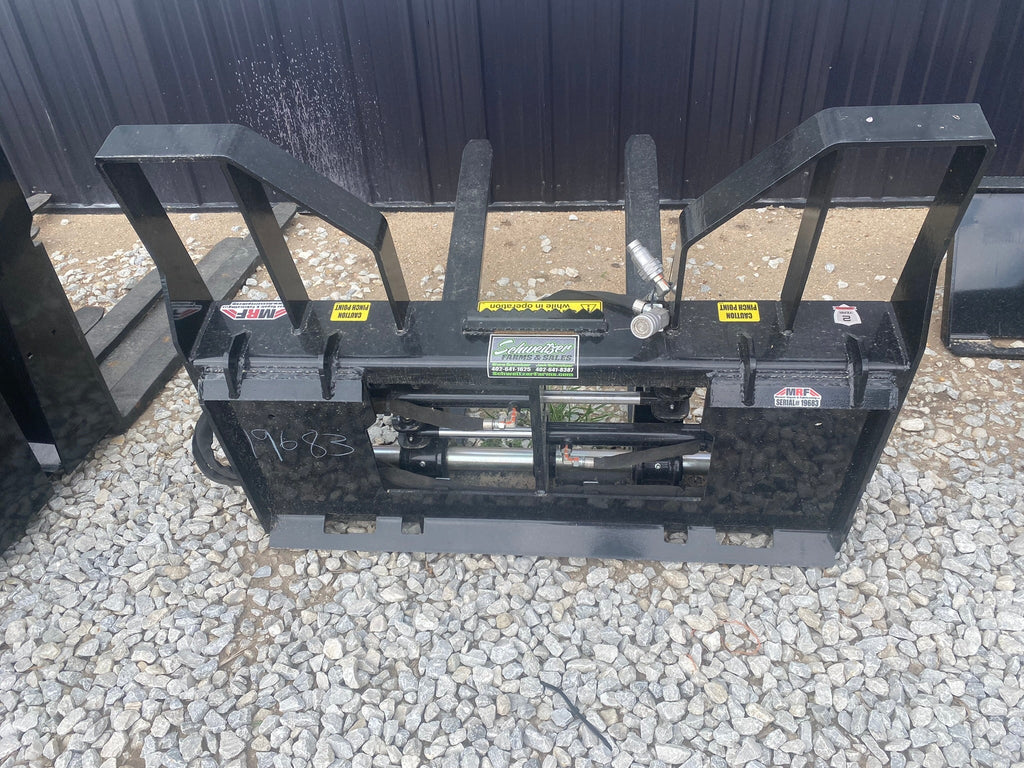

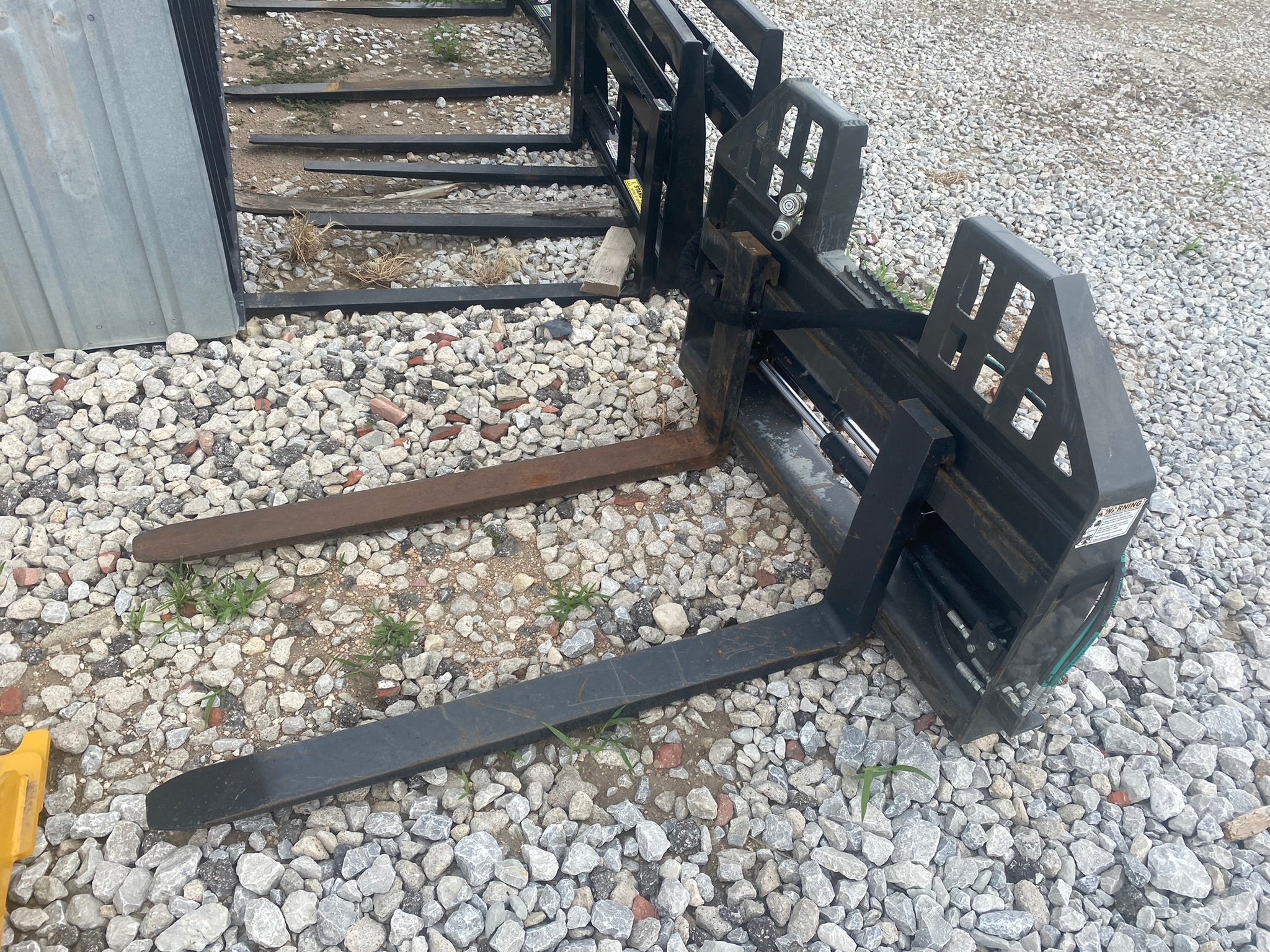

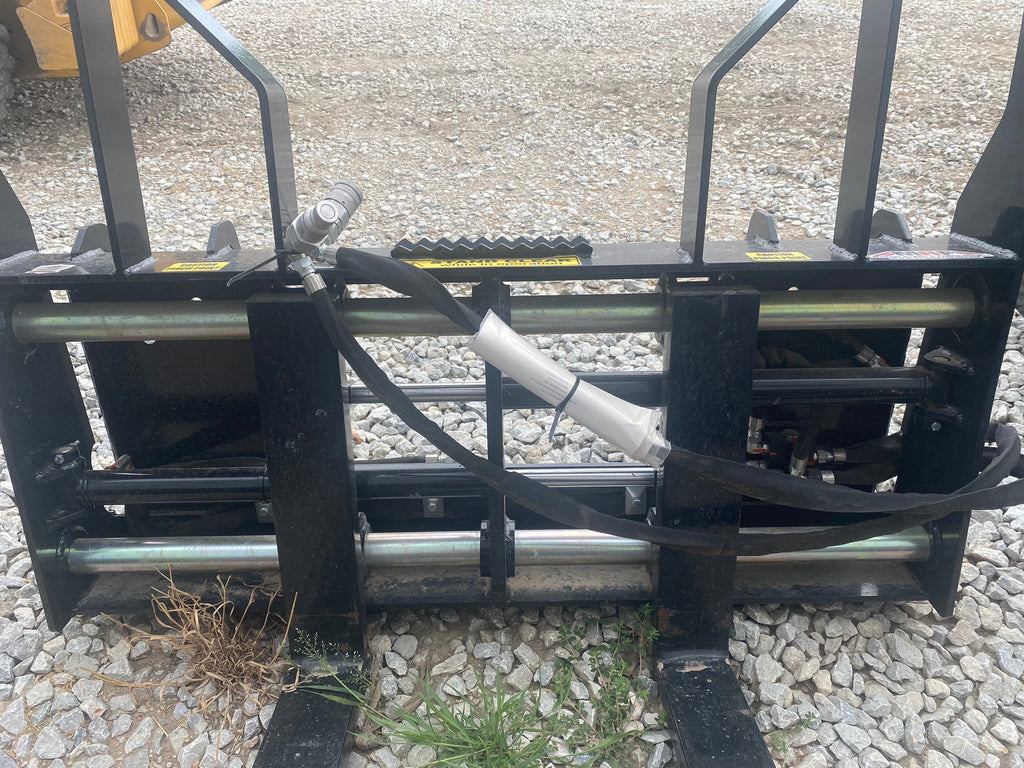

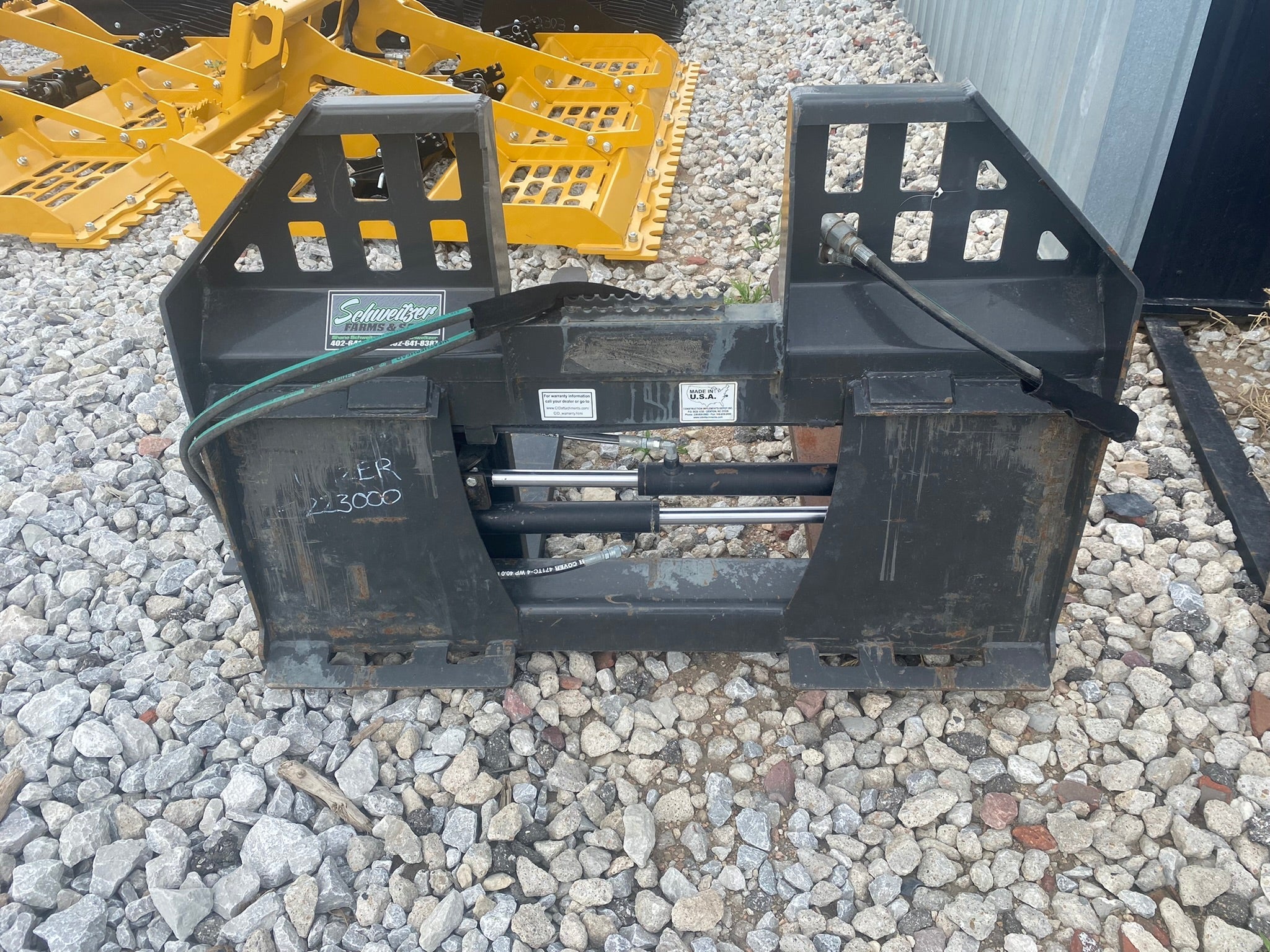

HYDRAULIC SLIDING PALLET FORK

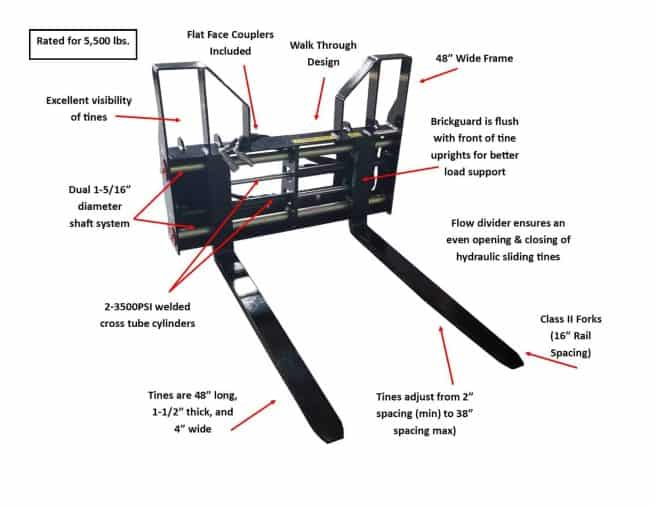

• Hydraulic Sliding Pallet Fork walk through design eases entry and exit of machine, works well with swing out cab doors
• Excellent visibility of Pallet Fork tines
• The Brick guard is flush with front of tine uprights for better load support
• Tines adjust on the 48″ frame from 2” spacing (min) to 38” spacing (max)
• Tines adjust on the 60″ frame from 2” spacing (min) to 50” spacing (max)
• Tines adjust on the 72″ frame from 2” spacing (min) to 62” spacing (max) • 2-3,500 PSI welded cross tube cylinders
• Features a dual 1-15/16” diameter shaft system to constrain and make the tines more stable, as well as to increase overall strength
• Includes flow divider to ensure an even opening & closing of the hydraulic sliding tines
• Flat Face Couplers Included
• Rated for 5,500lbs
