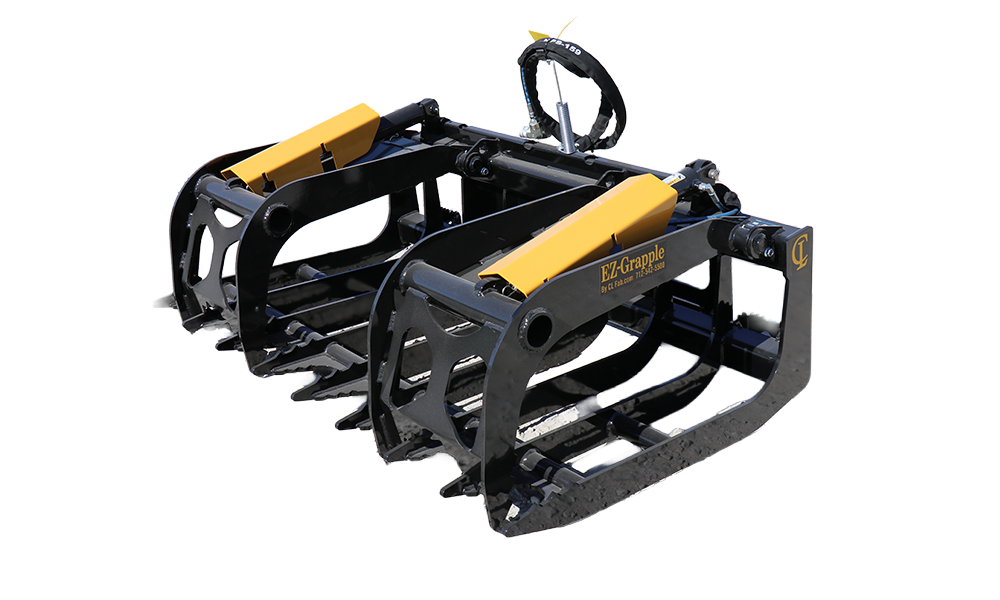

EZ BRUSH GRAPPLE

BRUSH GRAPPLE WITH NARROW SPACING BY CL FABRICATION

HIGH STRENGTH GRASPING TOOL FOR TREES, BRUSH AND ROOTS

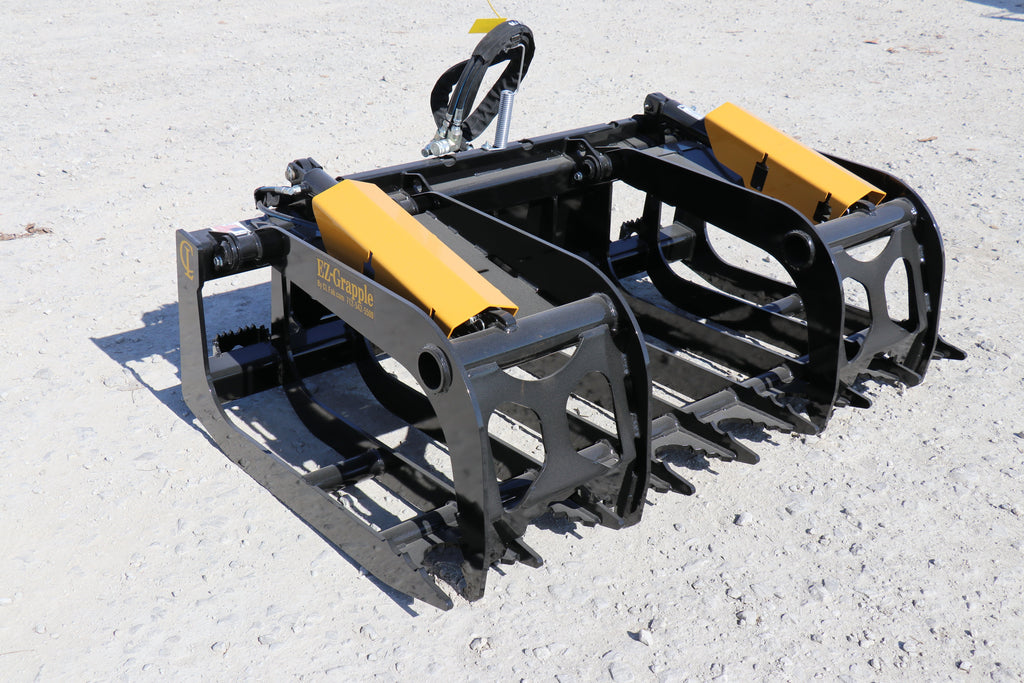

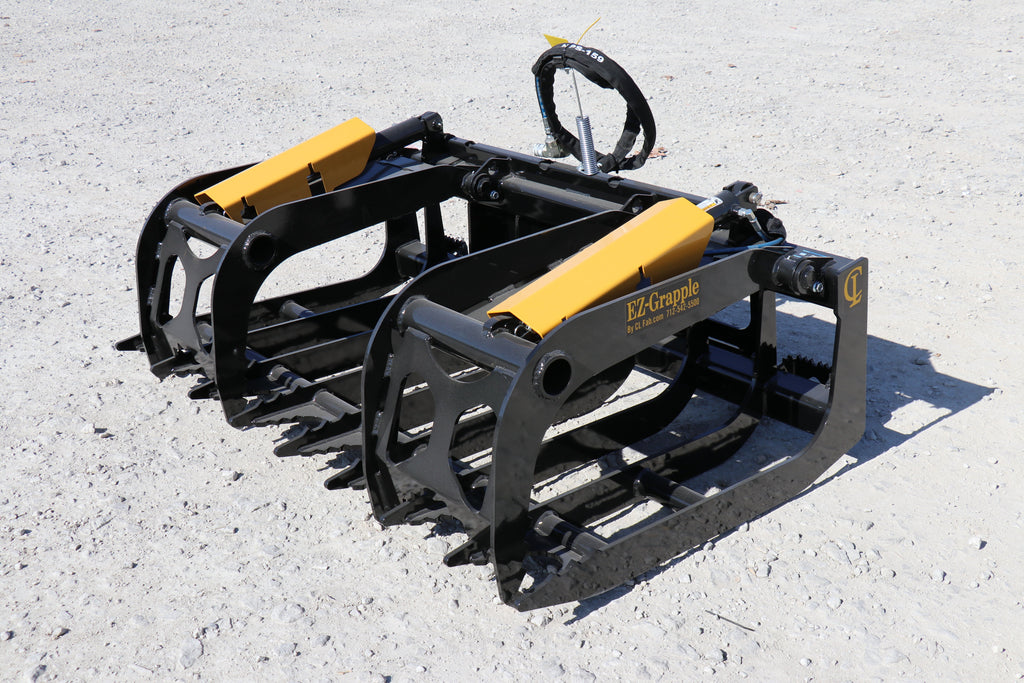

EZ Grapple for trees, brush and roots features HIGH STRENGTH Steel construction with a 50″ opening to grasp large objects.

Features Include

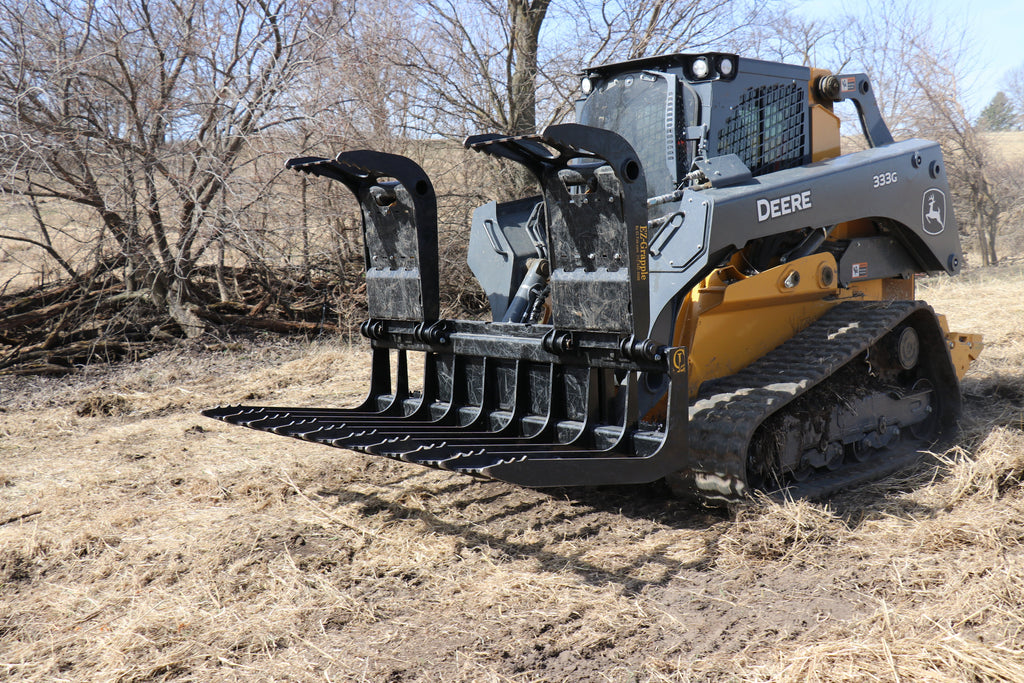

• 50″ opening easily grasps large objects

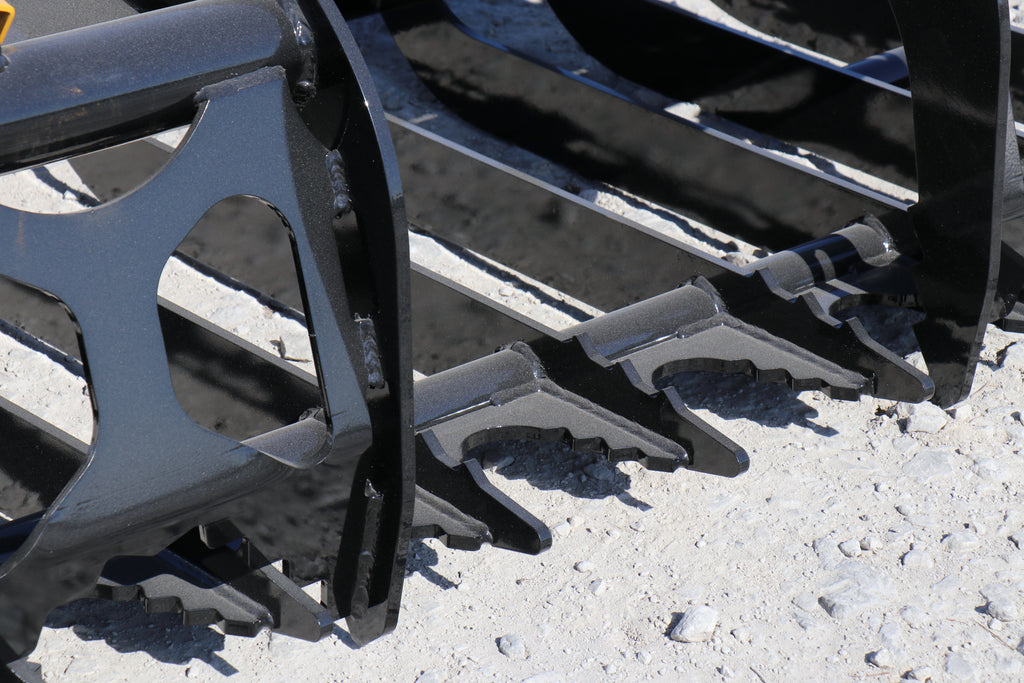

• Upper and lower tines are 1/2″ Thick GRADE 50 high strength steel.
• 4″x4″x1/4″ upper and lower frame tubes

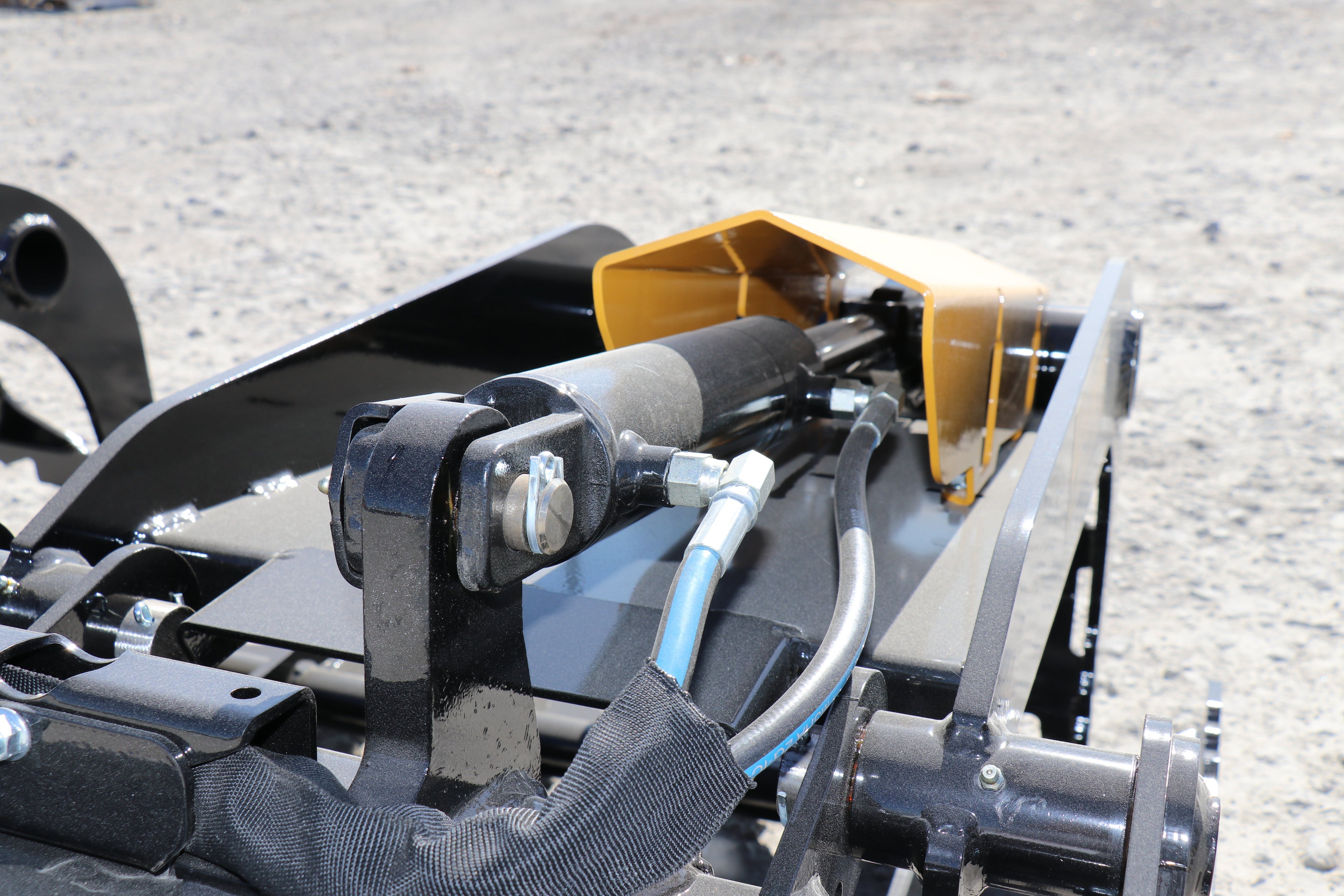

• 2.5″x8″ welded hydraulic cylinders
• Hydraulic cylinders and cylinder rods are guarded
• 1/2″ thick one piece GRADE 50 brace between tine points.
• 1.5″ diameter, CF 1045 pivot pins through thick wall greaseable bushings at all pivot points
• Abrasive blasted and powdered coated
• Dimensions 57″ high with grapple open
• 47.5″ front to rear
• Narrow spacing tines 4”
• Available Width sizes 72”, 81”, 90”
